Overview Tab
Site Overview
The Site Overview is driven by tags & metadata. If you do not have the correct tags & metadata on entities as described below, some of the features will not work.

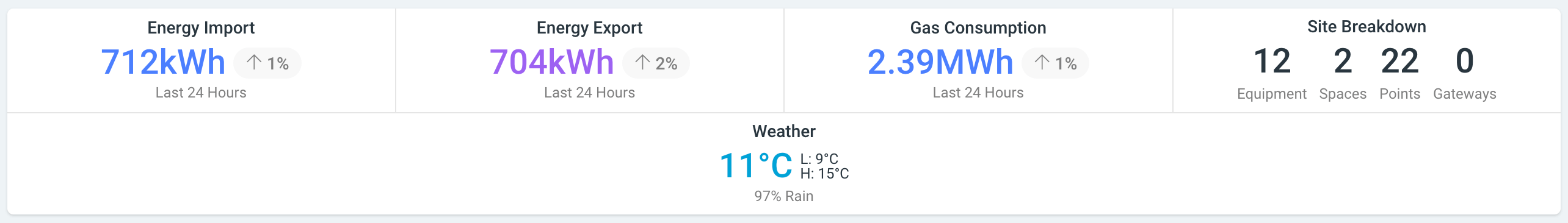

Site Summary
Depending on Tags & Metadata on the entities, the Summary can show:
Site Energy Import, Site Energy Export and Gas Consumption Numbers (aggregated from 'siteMeter' tagged main meters). There is an up/down arrow and percentage to represent the increase/decrease in energy compared with the previous 24 hour period.
Site Breakdown Numbers - this shows the number of Spaces, pieces of Equipment, Points, and Gateways at the site.
Weather - this shows the weather at the site (current temperature, daily low and daily high, % precipitation). The site must have the correct metadata to show this (tz and geoCoord).

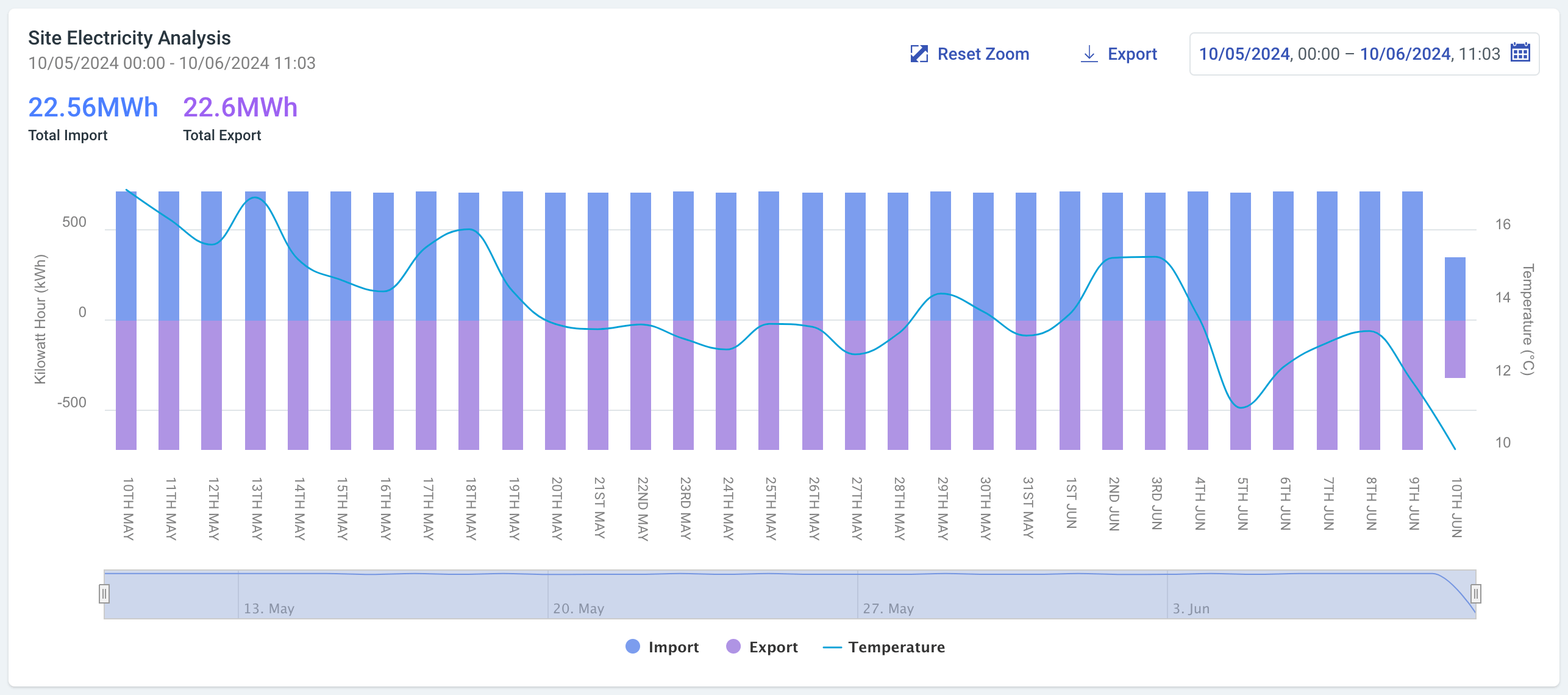

Site Electricity Analysis
This requires a 'siteMeter' tag on Electricity Meter equipment to display a graph showing import and export, with temperature overlay, as well as 'tz' and 'geoCoord' metadata on the Site. You can change the time period and intervals you want to see by using the options on the top right of the graph, as well as export the graph in a range of file formats.

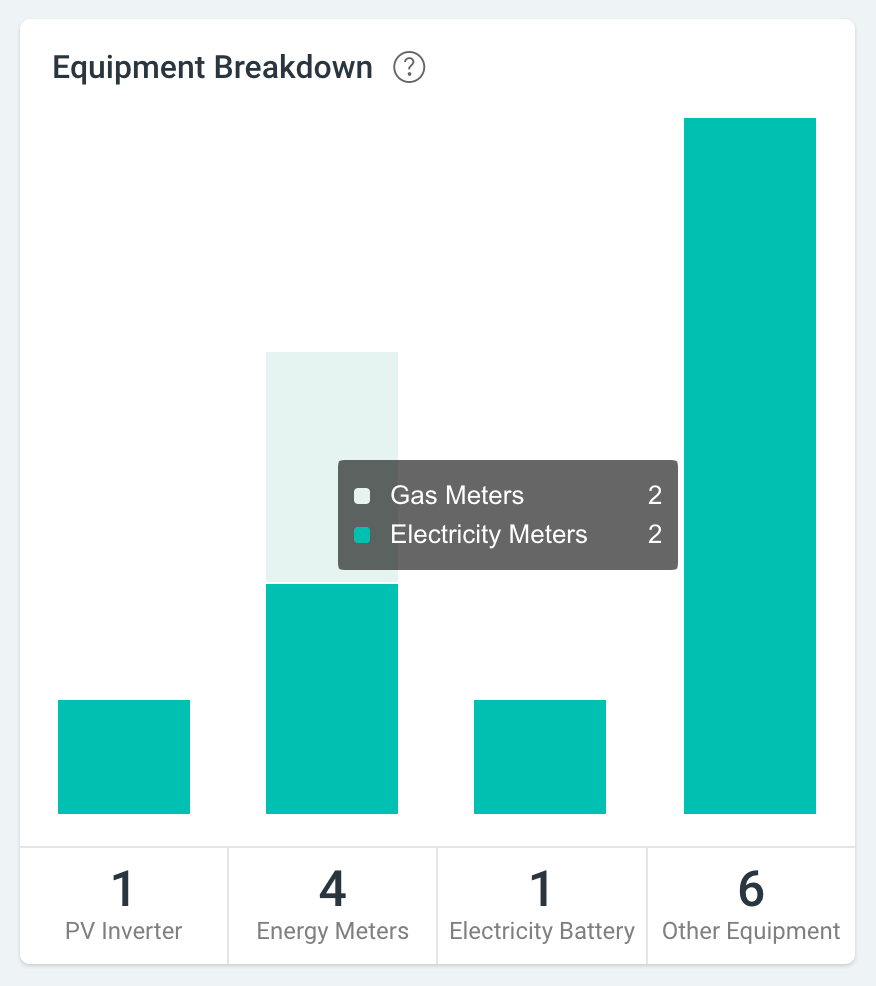

Equipment Breakdown
This bar chart shows the number of each Equipment Type across the site (requires the equipment to have the correct system tags (e.g. "equip", "elec", "meter" for an Electricity Meter). And is broken down by:
PV Inverters
Energy Meters (This is a combination of Gas and Electricity Meters)
Electricity Batteries (Energy Storage)
Other Equipment
Top 10 Breakdown
This chart shows the energy imported/exported by individual pieces of Equipment at the Site, so users can see which of their PV Inverters, Electricity Meters or Gas Meters are doing the most work/contributing the most energy. These are ordered as a "top 10" for each Equipment type, where the top Equipment are the ones with the highest combined import and export figures.
