Gas Meter
When viewing a piece of Equipment configured as a gas Meter in the Explorer Hierarchy, you are presented with a tab labelled Gas Meter
This guide will describe the various information, metrics and charts available on the Gas Meter tab.

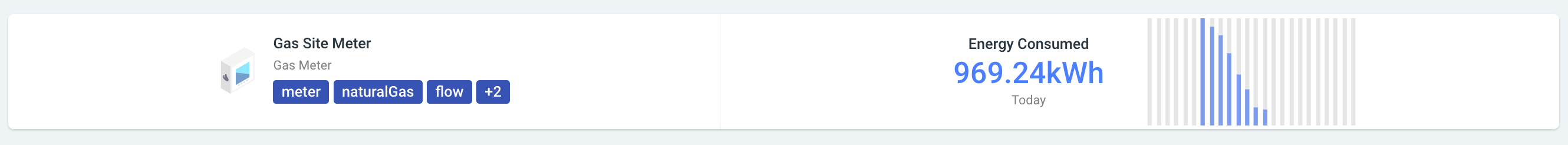

Summary
The Summary section contains the following:
Equipment Details
- Equipment Name: The user defined name of the Equipment.
- Equipment Type: The type of the Equipment, determined by its tags.
- Tags: The system and user defined tags for the Equipment; only tags relevant to a Gas Meter are shown. Other tags can be viewed by hovering the
+(n)tag, if present.
Gas Meter Summary
- Energy Consumed Today: The amount of energy used by the meter today in kWh.

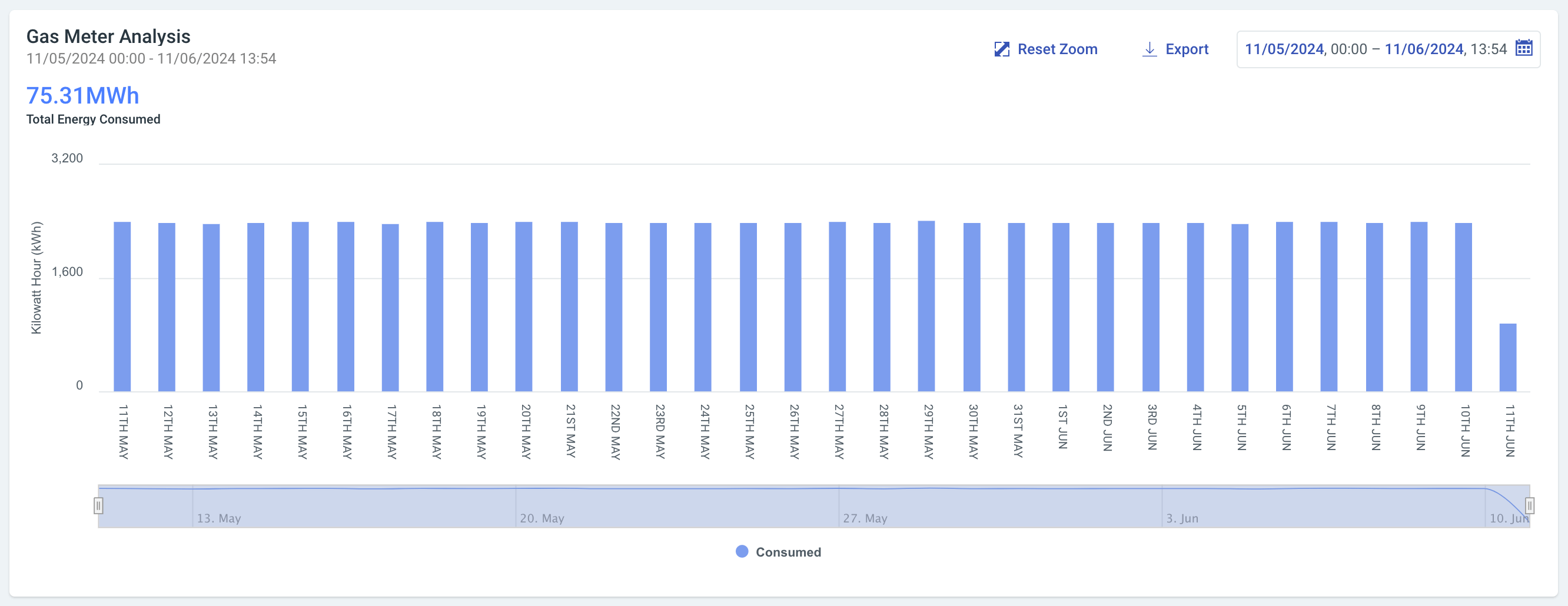

Gas Meter Analysis
This chart shows the consumption of the Gas Meter over time. By default it will show this information over the last 31 days at daily intervals. To view this information over a specific time period and interval, you can use the date range picker on the graph.
You can zoom-in on a range within the current period by dragging out a rectangle in the chart or by adjusting the handles in the navigator below.
To help with your external analysis, the graph can be exported as a visual or as raw data using the 'Export' button.
